Questions & Answers

Q: QuestionWhat is the maximum amount of memory supported by this motherboard?

• A:Answer The maximum supported memory is 128 gigabytes.

Q: QuestionWhat processor socket does this motherboard use?

• A:Answer This motherboard uses the AMD AM5 socket.

Q: QuestionHow many M.2 slots are available on this motherboard?

• A:Answer This motherboard has 4 M.2 slots.

Q: QuestionWhat type of audio output does this motherboard support?

• A:Answer It supports 7.1-channel High Definition Audio output.

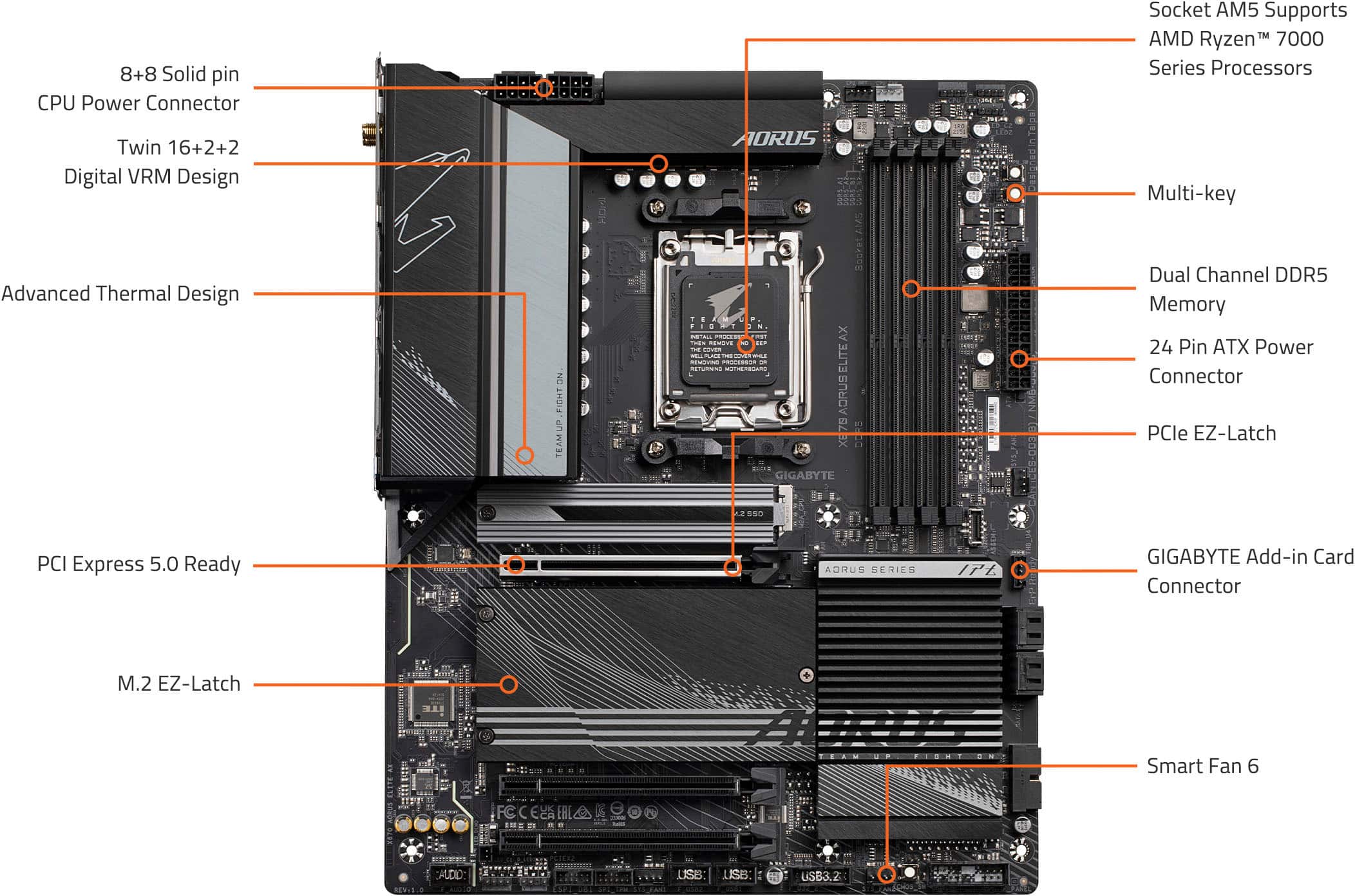

Q: QuestionOn the image on this listing, it shows the top PCIe x16 slot at PCIE 5 Ready, but I believe that is deliberate obfuscation. That slot is only PCIe 4.0 capable and it isn't clarified in the Specs section either. Has anyone heard otherwise?

Asked 3 years ago by Kiyometa.

• A:Answer You are absolutely correct Gigabyte X670 AORUS ELITE AX (Socket AM5) the top PCIe x16 slot is a PCIe 4.0 slot. But I doubt it really matters AMD has confirmed that its next-gen Radeon RX 7000 series "RDNA 3" graphics card will NOT be using the new PCIe Gen5 "12VHPWR" power connector... which is something we kinda knew already, but now 100% confirmed from AMD themselves. Oct 25, 2022 and Nvidia 4000 series GPU's only support PCIe 4.0 So no matter what you see listed Keep in mind there must be a 6 pin power connector on a Motherboard that will be strictly for powering PCIe Gen 5.0 GPU's or any other Gen 5.0 devices. Bottom line = "Forget About It at least for the next 2 generations or about 4 to 5 years for GPU's

  Answered 3 years ago by Anonymous

  Helpful (1)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionDoes this motherboard support AMD Ryzen 7 8000 processors?

Asked 1 year ago by Gene920.

• A:Answer Hello, This motherboard will support AMD Ryzen 7 8000 Series Processors. Be sure to update the BIOS first. - KP

  Answered 1 year ago by GIGABYTE Official

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: Questionis this mother compatible with AMD - Ryzen 7 8700G?

Asked 1 year ago by carrizo007.

Q: QuestionHow do we know what revision this is to check ram compatibility?

Asked 2 years ago by NolaBoy504.

• A:Answer The current revision model should be the 1.1 version cause I recently bought this motherboard, but it’s always good to double check with geek squad or the official brand website to be accurate

  Answered 2 years ago by JadenHVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionWill it fit and Nzxt H5 flow case ?

Asked 2 years ago by MiguelR.

• A:Answer Yes it will fit, H5 is a mid tower and supports ATX motherboards

  Answered 2 years ago by IliasVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionI didn’t get a post after building a pc for the first time, the dram and cpu light came on. I checked the motherboard and it had a bent pin on it. Is the dram and cpu light on because of the bent pins? I may get this motherboard.

Asked 3 years ago by Bray.

Q: QuestionDoes the motherboard come with Bluetooth?

Asked 3 years ago by Bray.

• A:Answer Yes

  Answered 3 years ago by ThePurgemanVerified Purchase

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionWas this released yet or did it just instantly sell out?

Asked 3 years ago by Xinicide.

• A:Answer For a while, it was just pre-listed. It sold out after a few hours. Then it was back the next day. Today its available and has been since yesterday.

  Answered 3 years ago by xxWARSPITExx

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)
