Swann - Smart-Series 8-Channel, 4-Camera Indoor/Outdoor Wired 1080p 1Tb DVR Surveillance System - Black/White
- Key Specs
- Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 80 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Camera Power Source: Battery-powered, AC/DC Power (plug-in)
- Number Of Channels: 8
- Recording Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: DVR
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: Smart-Series 8-Channel, 4-Camera Indoor/Outdoor Wired 1080p 1Tb DVR Surveillance System
- Brand: Swann
- Model Number: SWDSK-850004A-US
- Camera
- Camera Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 80 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 100 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 8
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Camera Infrared Distance: 100 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Infrared Cut Off Filter: true (Often referred to as an IR or heat-absorbing filter, this camera feature is designed to block infrared light during the day to produce optimally lit images, while still allowing for night vision capabilities in low light.)
- Camera Mount Type: Other
- Power
- Camera Power Source: Battery-powered, AC/DC Power (plug-in)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Camera Compatibility: Not Available
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Number Of Channels: 8
- Video Compression Type: Not available
- Recording Resolution: 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Video Recording Prompt: Motion detection
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 1000 gigabytes
- External Storage Capacity Upgradeable Upto: 4000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 4000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -4 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Auto-On Detection: Motion
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): BNC, HDMI, RCA audio, USB 2.0, VGA
- Display
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: false
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 840236116683
Swann 8-Channel, 4-Camera Security System: Set up a security system in your home with this SwannOne smart eight-channel security kit. A large 1TB hard drive stores all your videos created by the four 1080p cameras that record in high definition for maximum image quality. Easy wireless setup ensures this SwannOne smart eight-channel security kit takes moments to configure.
- Notifications keep you informed: Receive movement-detection notifications that contain recorded footage and give you the options to watch live or sound the siren.
- Monitor your property with 4 cameras: Includes 4 1080p cameras for recording high-resolution video for widescreen viewing.
- View and record from up to 8 channels: Add up to 8 cameras of your choice for 8-channel simultaneous monitoring. Compatible with most Swann cameras (sold separately).
- Set and forget with hard drive storage: Record continuously from 8 channels for up to 80 consecutive days with a 1TB hard drive. For extra capacity, connect an external hard drive to the eSATA port.
- Capture everything in FHD: Vivid 1080p resolution allows you to see small details on your screen.
- Powerful night vision up to 100 ft.: Allows you to monitor your home or business, even in dim lighting, automatically switching the picture to black-and-white in low-light conditions.
- Viewing angle up to 80°: Expertly captures a wide angle of your property for exceptional security at all times.
- Weather-resistant design: Aluminum construction with IP66 rating protects against wind and rain for versatile indoor/outdoor monitoring.
- Live viewing: Easy setup for widescreen, real-time video playback on displays up to 1080p with high-speed Internet or smartphone connectivity.
- Works with SwannOne devices: Receive alerts on your smartphone.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Remote viewing with the free SwannView Link app: Surveillance in the palm of your hand with live viewing on any 3G-/4G-enabled smartphone or tablet. App download required.
- BNC wired installation: For reliable and secure connection.
- Mountable design: For optimal placement on a wall or countertop.

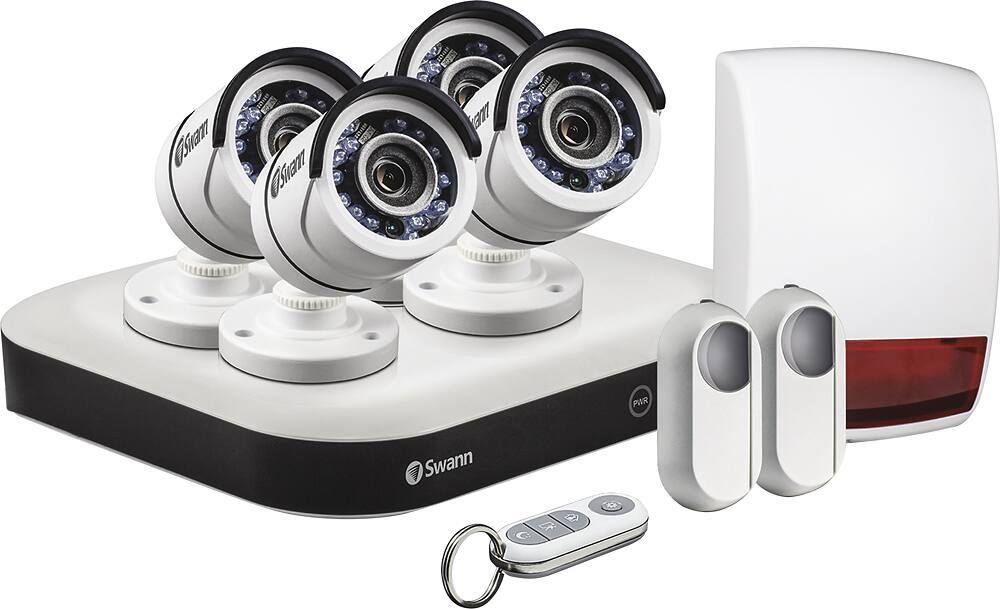

Whats Included
- 1080p Cameras x4
- 8 Channel DVR with 1TB Hard Drive
- Ethernet cable, HDMI cable, BNC cables 60ft x4
- Key Fob remote control with batteries
- Mouse
- Outdoor siren with batteries
- Power adapter and splitter
- Quick start guides
- Theft deterrent stickers
- Window/Door sensors x2 with batteries, mounting screws and plugs
A: You can set up a list of contacts to notify or to alert whenever certain events occur, for example, if a door/window sensor is activated because a door opens. As long as the door/window sensor is within RF range of the Smart Hub in the DVR, it will cause a NOTIFICATION (in Daytime mode) to be sent to everyone on the contact list whenever the door opens or closes. In NIght or Away mode, that notification turns into an ALERT that can go to the same or a different set of contacts. If you subscribe to the Swann Professional Monitoring Service, that alert will cause them to (1) call the phone number associated with the location to verify if the alert is genuine, and (2) dispatch the police if they get no response from any of the contact numbers or if the person contacted fails to provide the correct security code. Again, NOTIFICATIONS just send messages to the contact email (or SMS if you use an email address for it), but ALERTS are more serious and can cause a police response. The same logic applies to the Swann key fob (pressing the Panic button sends an ALERT). Hope that helps.
A: on my swann system i notice that about 150 feet the pictures are clear and if you zoom in on the picture you can see plate numbers and faces fairly clear. my cameras are mounted under my first floor eaves.
A: The DVR acts as the HUB. However, I found it to be terrible for that purpose and am getting a Smart Things hub.
A: This product has motion detection.
Q: Can you use your phone to look up recordings? Also how long does it keep its recording
A: Yes you can search on youphone
Q: im having problems with my receiver is making a beep sound and it is trouble shooting
A: undefined
Q: How well does the 2-way audio work? Are the microphones included?
A: Microphones and mike wiring were not included
Q: how far can the camera be from the DVR
A: It depends on your BC cables. They come with 60' per camera but can buy 100' from BestBuy.
