Dell - Pro Dock WD25Z USB-C Docking Station, Up to 130W Power Delivery, Up to Four Displays, 2.5GbE Ethernet, DELL-WD25Z - Black
Dell - Pro Dock WD25Z USB-C Docking Station, Up to 130W Power Delivery, Up to Four Displays, 2.5GbE Ethernet, DELL-WD25Z - Black
FREE shipping to
More Buying Options
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 8K (4320p)
- Number of DisplayPort Outputs (Total): 2
- Number of Thunderbolt Ports (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Dell
- Model Number: WD25Z
- Product Name: Pro Dock WD25Z USB-C Docking Station, Up to 130W Power Delivery, Up to Four Displays, 2.5GbE Ethernet, DELL-WD25Z
- Color: Black
- Display
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 8K (4320p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x HDMI 1.4, 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of Thunderbolt Ports (Total): 0
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 6
- USB Ports: 2 x USB-C 3.2, 4 x USB-A 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: true
- Cable Length: 2.95 feet
- Maximum Input Power: 180 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 240 volts
- Maximum Input Amperage: 9.23 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: DC jack (7.4mm) (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 130 watts (The maximum amount of power produced or allowed to flow through the device.)
- Maximum Output Voltage: 19.5 volts
- Maximum Output Amperage: 9.23 amperes (The maximum amount of amperage produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 10000 megabits per second
- System Requirements: Windows 10, Windows 11, Ubuntu 24.04, ChromeOS 137, Red Hat Enterprise Linux 9.6. USB-C port with DisplayPort Alt Mode required. Latest BIOS, GPU, and Ethernet drivers recommended. (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Dell, Compatible with select non-Dell USB-C laptops. Works with Thunderbolt 3 and Thunderbolt 4 host systems.
- Model Compatibility: Dell Latitude, Dell Precision, Dell XPS, Dell Inspiron, Dell Vostro, Dell OptiPlex, Dell Mobile Workstations.
- Features
- Cable Lock Slot: Kensington Security Slot (K-Slot)
- Material: Plastic
- Indicator Light(s): true
- Dimensions
- Product Height: 1.39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.07 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.54 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 19.36 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 884116692485
Transform a compatible USB-C or Thunderbolt laptop into a full desktop workstation with the Dell Pro Dock WD25Z, delivering single-cable connectivity for power, video, data, and wired networking through an integrated 0.9 m (90 cm) USB-C cable. Designed for business and power-user setups, the dock can provide up to 130W power delivery to supported Dell systems (up to 96W for non-Dell notebooks) while expanding ports for modern peripherals and displays. Connect up to four external monitors via two DisplayPort 1.4 outputs, one HDMI 2.1 port, and a USB-C 3.2 Gen 2 multifunction DisplayPort (video modes and maximum resolutions depend on the host system, bandwidth, and supported features such as DSC). Built-in wired networking supports up to 2.5GbE through the RJ-45 port, and additional connectivity includes four USB-A 3.2 Gen 2 ports plus two USB-C 3.2 Gen 2 ports for high-speed accessories. The WD25Z also supports enterprise deployment and maintenance with Dell utilities and features such as PXE boot, MAC address pass-through, and Wake-on-LAN on supported systems, making it a strong choice for office desks, hot-desking, and managed fleets across Windows 10/11 and select Linux and ChromeOS environments.

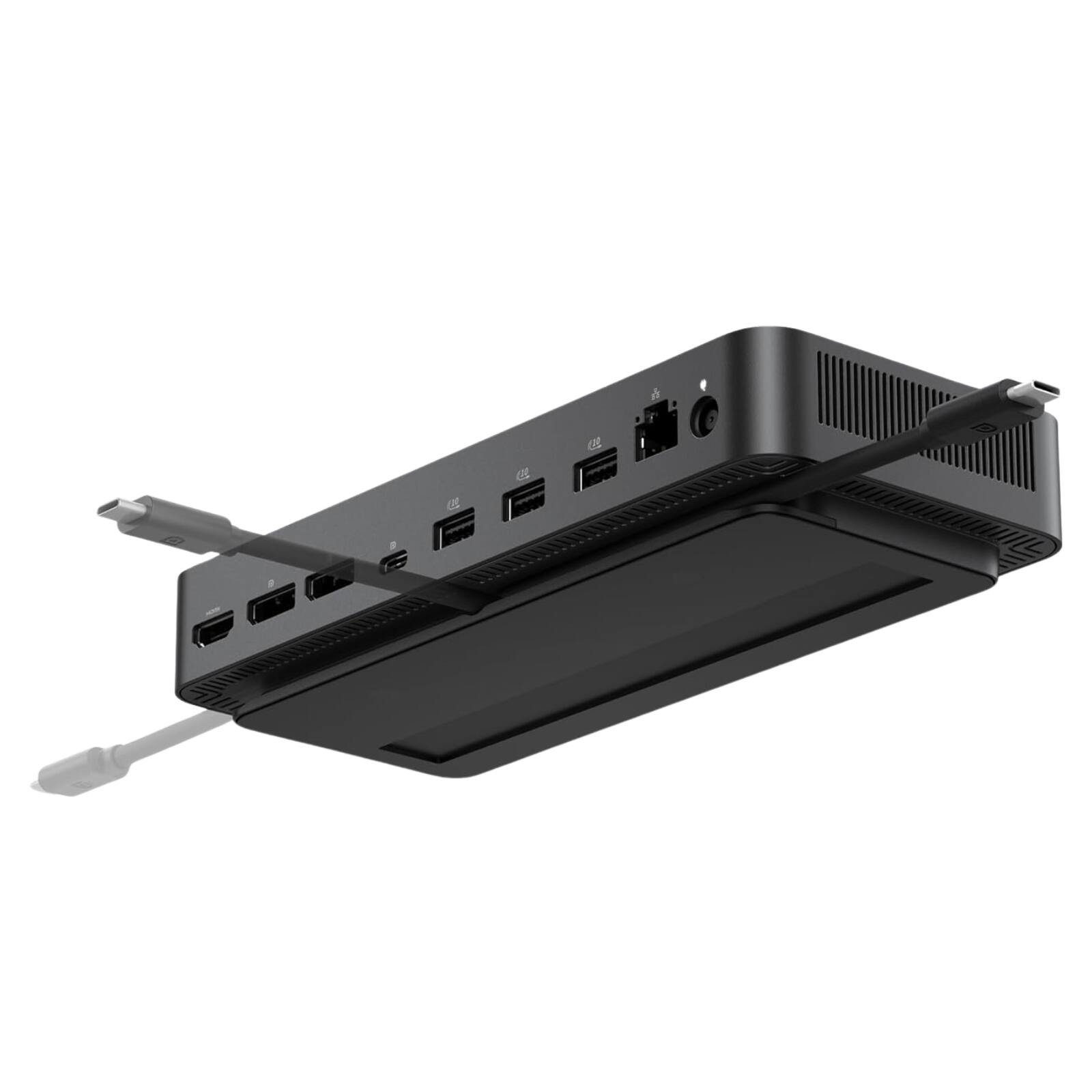

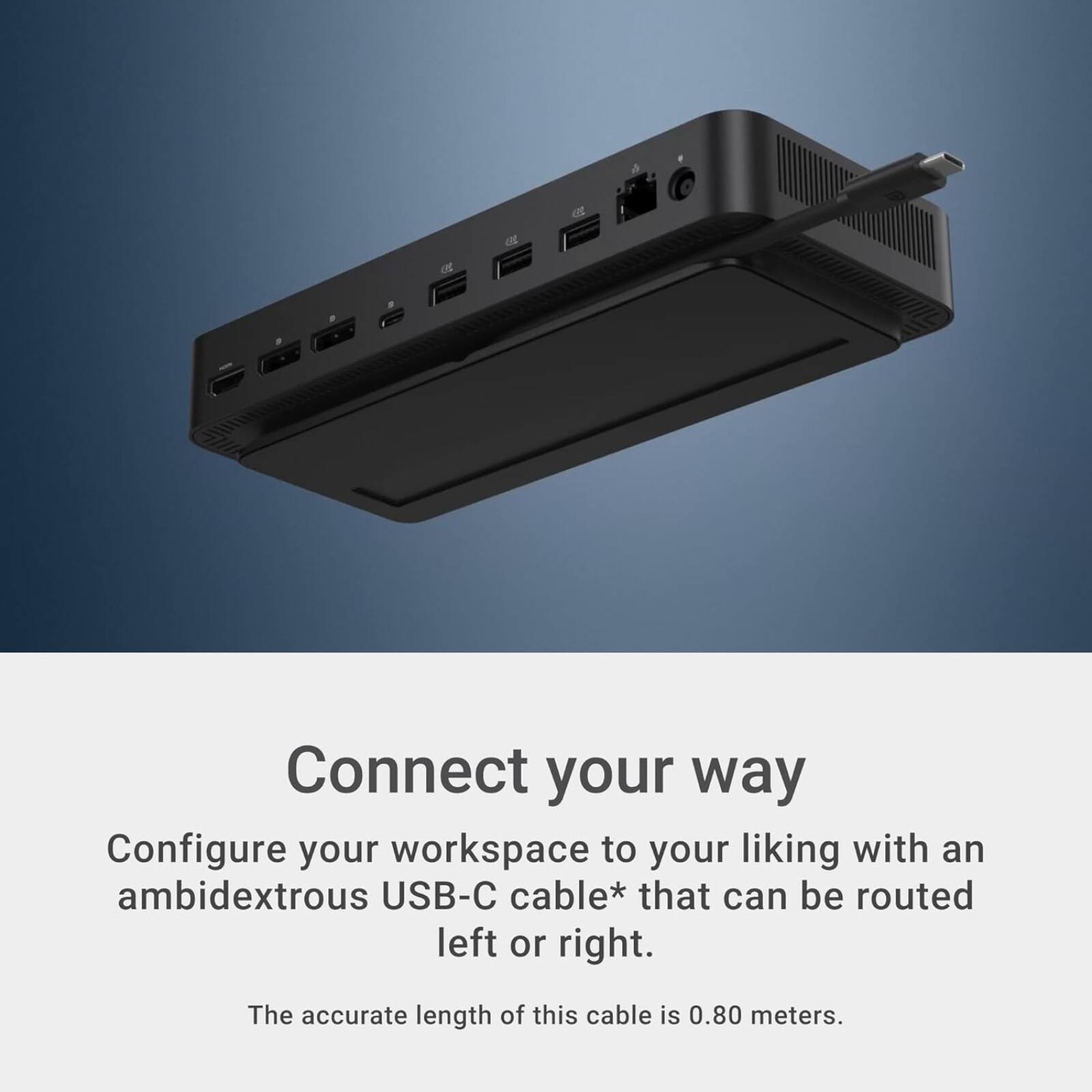

- Single-Cable USB-C Connection with Up to 130W Power: Connect your laptop to your workstation with a single USB-C connection that delivers up to 130W to supported Dell systems (up to 96W to compatible non-Dell USB-C notebooks). The integrated 0.9 m (90 cm) USB-C cable carries power, data, video, and network through one port to reduce desk clutter and speed up hot-desk or hybrid setups.
- Up to Four Displays via HDMI 2.1 and DisplayPort 1.4: Connect up to four external monitors using two DisplayPort 1.4 ports, one HDMI 2.1 port, and a USB-C port with DisplayPort Alt Mode. Supports high-resolution single-display output and multi-monitor configurations (maximum resolution and refresh rate depend on the host system, bandwidth, and display setup).

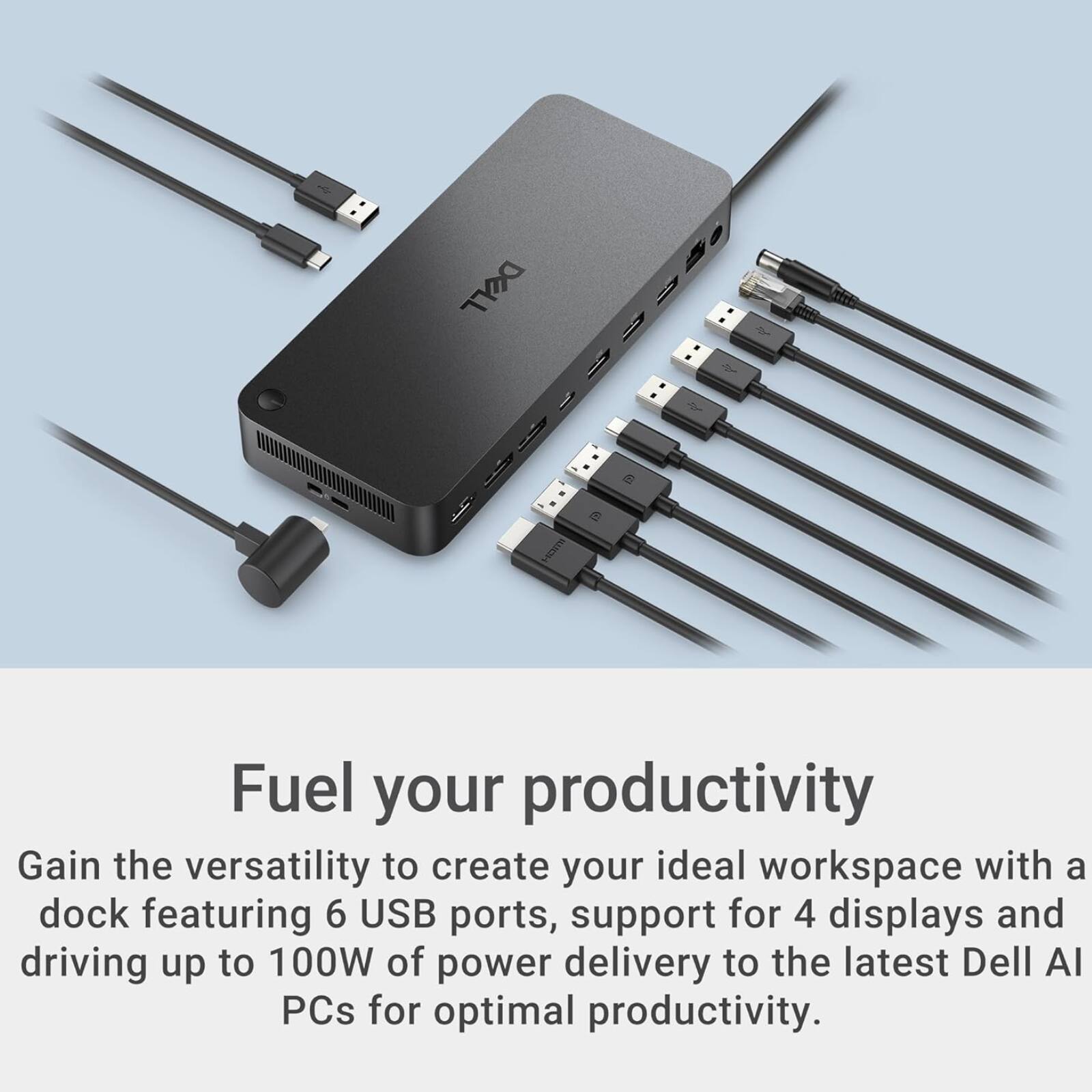

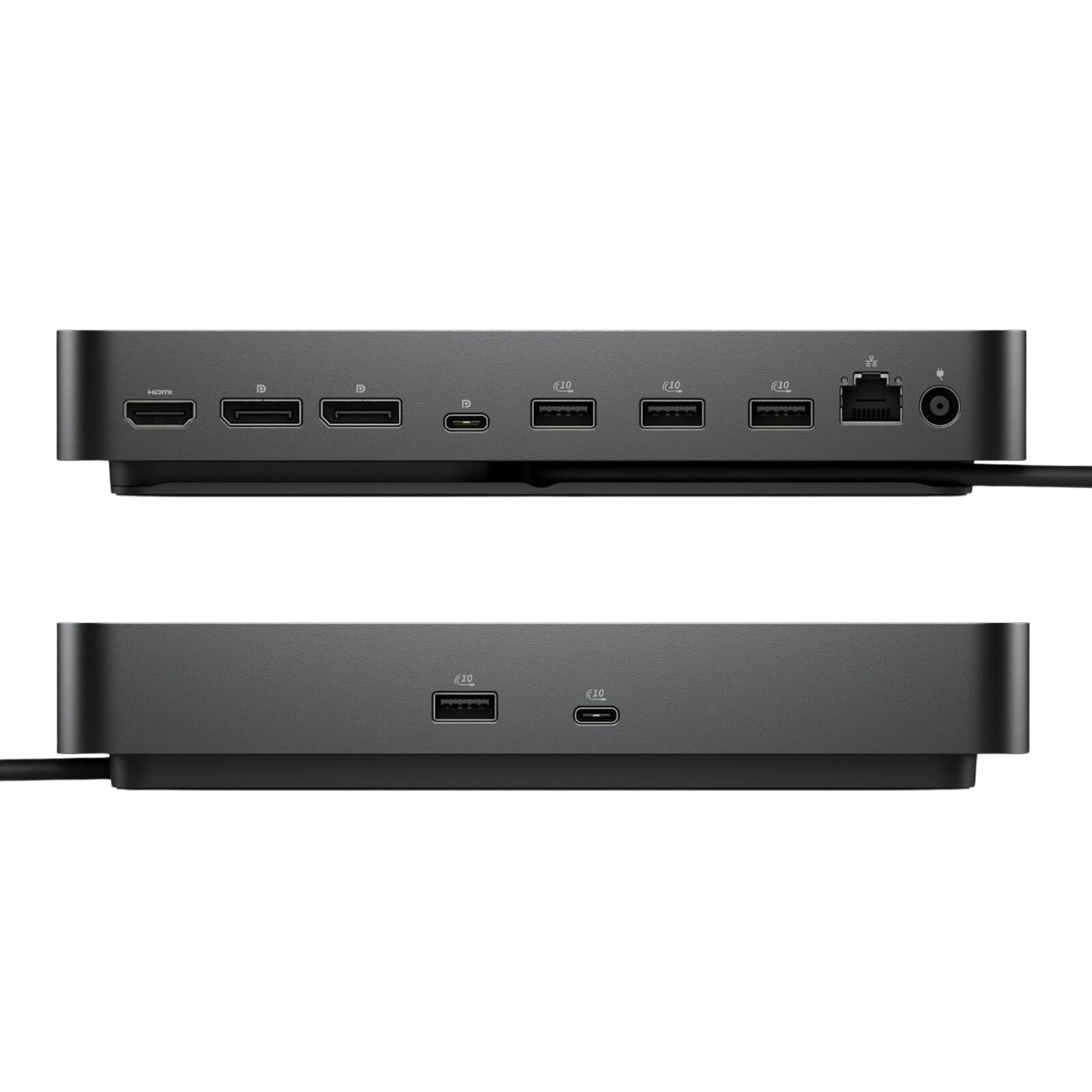

- Multiple Ports Including USB-A, USB-C, and 2.5GbE: Expand connectivity with four USB-A 3.2 Gen 2 ports, two USB-C 3.2 Gen 2 ports (one supports DisplayPort Alt Mode), two DisplayPort 1.4 ports, one HDMI 2.1 port, a 2.5 Gigabit Ethernet (RJ-45) port, and a 7.4 mm DC power input for reliable desk performance with peripherals, storage, and wired networking.

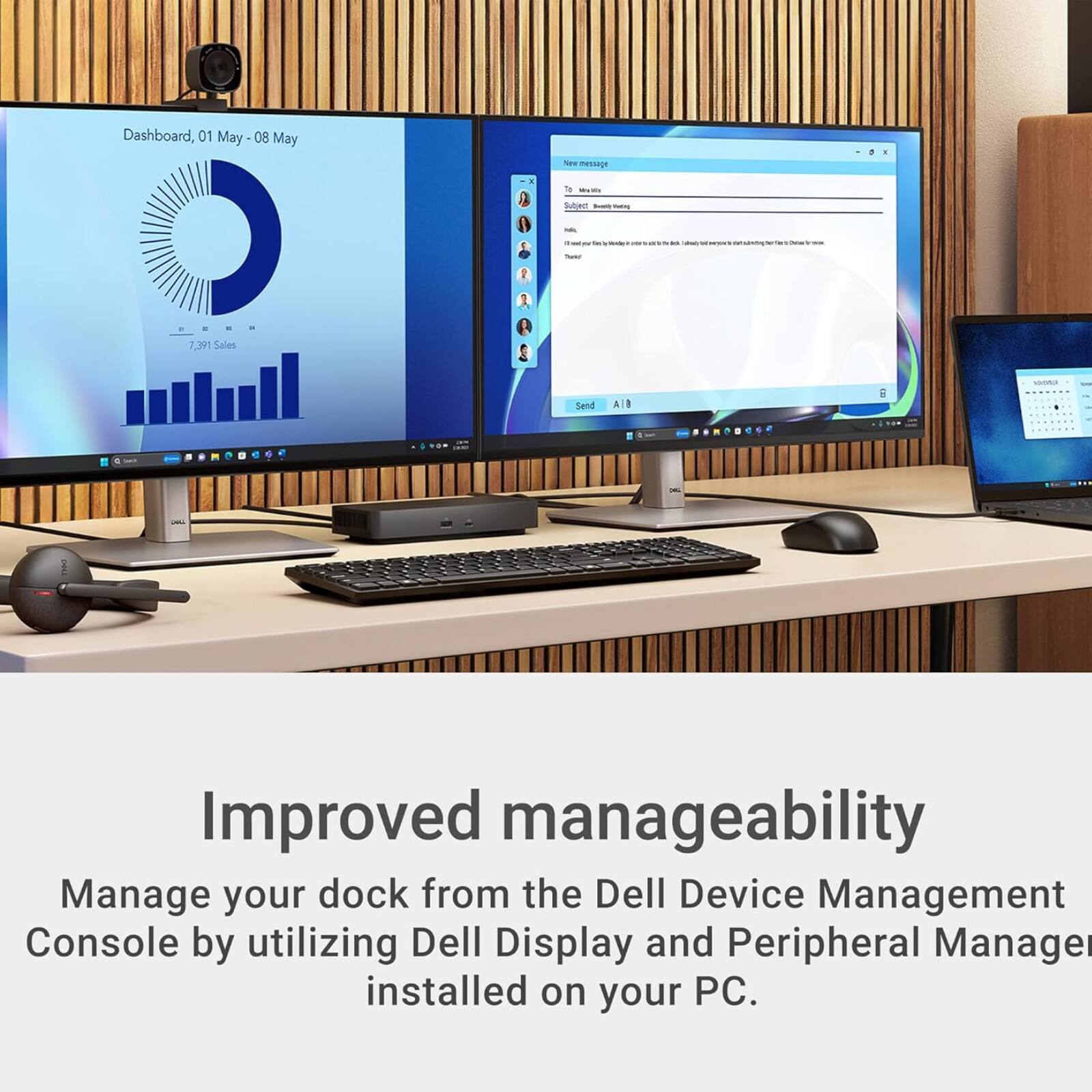

- Enterprise Features for Managed IT Environments: Designed for business deployment with support for Dell utilities and enterprise features such as MAC Address Pass-Through, Wake-on-LAN, and PXE boot on supported systems. Helps standardize desk setups and simplify maintenance across office and managed-fleet environments.
- Broad Compatibility Across USB-C and Thunderbolt Hosts: Works with USB-C and Thunderbolt 3/4 hosts and supports Windows 10/11 plus select Linux and ChromeOS environments. Compatible with many Dell Latitude, Precision, and XPS models, and with qualifying non-Dell USB-C notebooks (features may vary by system).
Whats Included
- Dell Pro Dock WD25Z Docking Station, Power Adapter, Power Cord
