ASUS

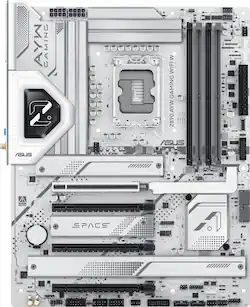

ASUS - Z890 AYW GAMING WIFI W (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 6 Motherboard - White

Model: Z890 AYW GAMING WIFI W
SKU: 6601253
(10 reviews from https://www.asus.com)
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: Intel Z890
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
    • Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 192 gigabytes
    • Memory Type Supported: DDR5
  • General
    • Brand: ASUS
    • Model Number: Z890 AYW GAMING WIFI W
    • Product Name: Z890 AYW GAMING WIFI W (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 6 Motherboard
    • Color: White
    • Year of Release: 2024
  • Compatibility
    • Chipset: Intel Z890
    • Chipset Compatibility: Intel
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: Intel Core Ultra 9 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 5 Series 2
    • Operating System Compatibility: Windows 11 Home, Windows 11 Pro
  • Slot
    • Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
    • Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
    • Number Of PCI-E x16 Slots: 4
    • Number Of Memory Slots: 4
  • Connectivity
    • Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
    • Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
  • Ports
    • USB Ports: 3 x USB-A 3.2, 4 x USB-A 3.1, 8 x USB-A 2.0 (The number and type of USB ports the product has.)
    • Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
  • Dimensions
    • Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 46 ounces (The out of box weight of the item.)
  • Memory
    • Maximum Memory Supported: 192 gigabytes
    • Memory Type Supported: DDR5
    • Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
    • Memory Speeds Supported: 8600+(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5600/5200/4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
    • Memory Slot Type: 288-pin DIMM
  • Features
    • RAID Support: RAID 1, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: 3 years
  • Other
    • UPC: 197105752115

The Z890 AYW GAMING WIFI W ATX motherboard, Advanced AI PC-ready, 12+1+2+1 80A DrMOS power stages, DDR5 slots, PCIe 5.0, DisplayPort, rear and front USB 20Gbps Type-C ports, 4 x M.2 slots, Wi-Fi 6, Realtek 2.5 Gb Ethernet, PCIe Slot Q-Release, Pre-mounted I/O shield, BIOS FlashBack, Aura Sync

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
  • Robust Power Solution: 12+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe 5.0, rear USB 20Gbps Type-C, front panel USB 20Gbps Type-C with up to 30W PD/PPS Fast-charge and USB Wattage Watcher, Thunderbolt (USB4) header support
  • Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II
  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
  • Robust Power Solution: 12+1+2+1 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe 5.0, rear USB 20Gbps Type-C, front panel USB 20Gbps Type-C with up to 30W PD/PPS Fast-charge and USB Wattage Watcher, Thunderbolt (USB4) header support
  • Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers and Fan Xpert 4 with AI Cooling II

Q: Are there any other networking options besides Wi-Fi 6?

A: This motherboard features Realtek 2.5 Gb Ethernet in addition to Wi-Fi 6.

Q: Can the motherboard support Intel Core Ultra 9 Series 2 processors?

A: This motherboard offers support for Intel Core Ultra 9 Series 2 processors.

Q: How many DDR5 slots does the motherboard have?

A: The motherboard has 4 DDR5 slots.

Q: What is the maximum memory supported by the motherboard?

A: The maximum memory supported by the motherboard is 192 gigabytes.

Q: Does the motherboard support PCIe 5.0?

A: This motherboard offers support for PCIe 5.0.

Q: Does the ASUS - Z890 AYW GAMING WIFI W support M.2 5gen SSD Drive?

A: Yes, the ASUS - Z890 AYW GAMING WIFI W supports M.2 Gen 5 SSD.
