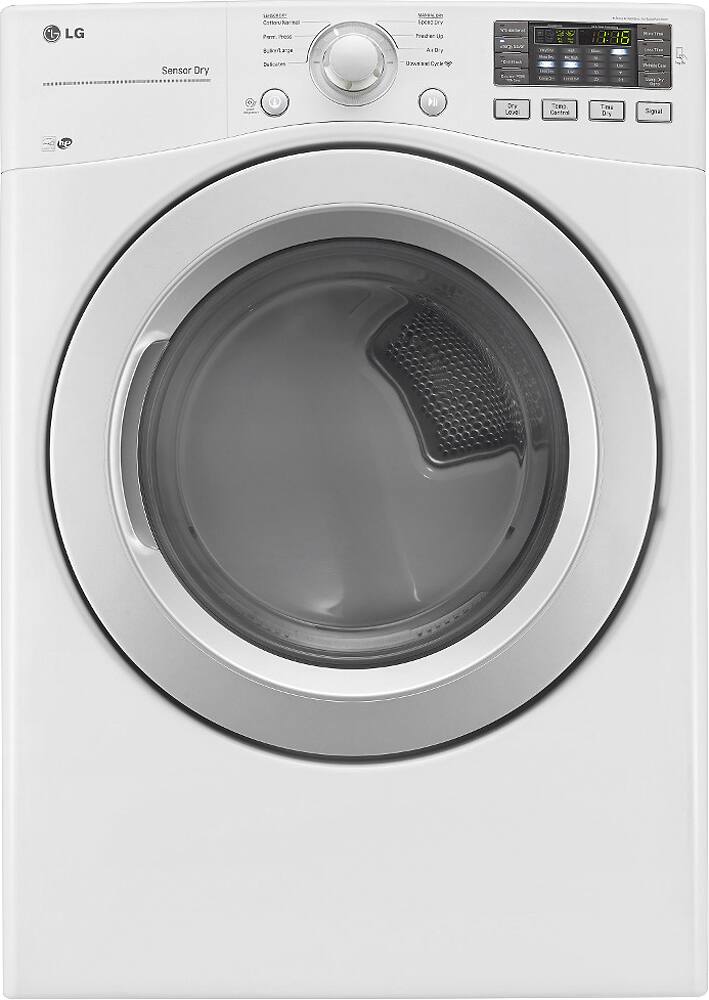

LG - 7.4 Cu. Ft. 8-Cycle Electric Dryer - White
Model: DLE3170W
SKU: 1803138
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 38 20/29 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 51 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.4 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Pedestal Model Compatibility: WDP4W
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Color Finish: White
- General
- Product Name: 7.4 Cu. Ft. 8-Cycle Electric Dryer
- Brand: LG
- Model Number: DLE3170W
- Color Finish: White
- Dimensions
- Product Height: 38 20/29 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 51 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 130 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.4 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Rear
- Control Type: Electronic
- Control Location: Front panel
- Drum Material: Steel
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 8
- Drying Cycles: Cotton/Normal, Perm. Press, Delicates, Bulky/Large, Download/Super Dry, Freshen Up, Speed Dry, Air Dry (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, Signal On/Off, Anti-Bacterial, Energy Saver
- Number of Temperature Settings: 5
- Temperature Settings: High, Medium High, Medium, Low, Ultra Low
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: WDP4W
- Matching Washer Available: true
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Electrical Specification
- Estimated Annual Electricity Use: 607 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 73 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 048231014748
LG 7.4 Cu. Ft. 8-Cycle Electric Dryer: Say good-bye to damp laundry with this ultralarge-capacity dryer that uses Sensor Dry technology to sense moisture and ensure that even the largest loads are completely dry by the end of the cycle.
- Download cycles from your smartphone with NFC Tag On technology: Simply download the app, select the new cycle and tag your LG appliance to download your selection. Plus, get instant solutions to your troubleshooting questions.
- 7.4 cu. ft. D.O.E. capacity for large loads: Do your laundry in fewer loads with this ultralarge-capacity dryer.
- Safely dry your garments and linens with 1 of 8 cycles: Includes cotton/normal, permanent press, bulky/large, delicates and more.
- Select the right drying temperature for your clothes: Choose from 5 temperature settings.
- Ideal drying time and energy savings with Sensor Dry technology: Detects moisture levels and automatically adjusts the temperature with a variable heat source to accommodate each load, from heavy jeans to delicates.
- LoDecibel quiet operation: Minimizes dryer noise for convenient placement in 1st-floor laundry rooms or near bedrooms.
- Save time between loads with an end-of-cycle signal: Know exactly when it's time to remove your load with an audible signal. Plus, the remaining time display will help you coordinate chores.
- Front-load design to save space: With an optional stacking kit, you can add the matching washer (sold separately).
- Reversible door enables flexible placement: Window lets you easily see drying clothes.
- Easily operate your dryer: Up-front digital controls and LED display offer easy operation.
- Durable, rust-resistant drum: Made with aluminized alloy steel along with a painted steel cabinet.
- Keep children safe: Child lock prevents unintentional or unauthorized use of the dryer.
Whats Included
- 7.4 Cu. Ft. 8-Cycle Electric Dryer
- Dryer cords are not shipped with the dryer.
- Owner's manual
A: The depth of the dryer at the top surface is 27.50" at the top. The depth at the widest point is 30.75". If dryer is vented out the rear, the minimum total depth is 35.25".
A: back center, but there is two option to place a vent on either side, if you want to do it your self.
Q: does this dryer have a light in it?
A: Yes it does
A: The answer to this question is in the measurements if you take the time to measure what existing pedestal you have and the current measurements of the new washer dryer set, this could be a direct fit. Personally we built our own pedestal custom fit and was much more gratifying and conducive to our project as well as saved us $500 cost which be put towards brand new cabinets and countertops. I hope this helps you in your Endeavor good luck.
Q: How noisy is the LG 7.5 cubic foot model DLE3170W
A: I find it to be very quiet.
A: if you were facing the machine from the front, it would be on the left side. Or if you were facing from the back it would be on the top right
A: You need to buy the kit or re-used the one you had before. Bestbuy sells it.
A: 3 wire 220 works just fine no need to rewrire your house!
