Elgato - Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution - Black
- General
- Brand: Elgato
- Model Number: 10MAG9901
- Product Name: Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution
- Color: Black
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- Product Width: 3.47 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.63 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.66 pounds (The out of box weight of the item.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Input(s): 3.5mm audio
- Volume Control: true
- UPC: 840006642886

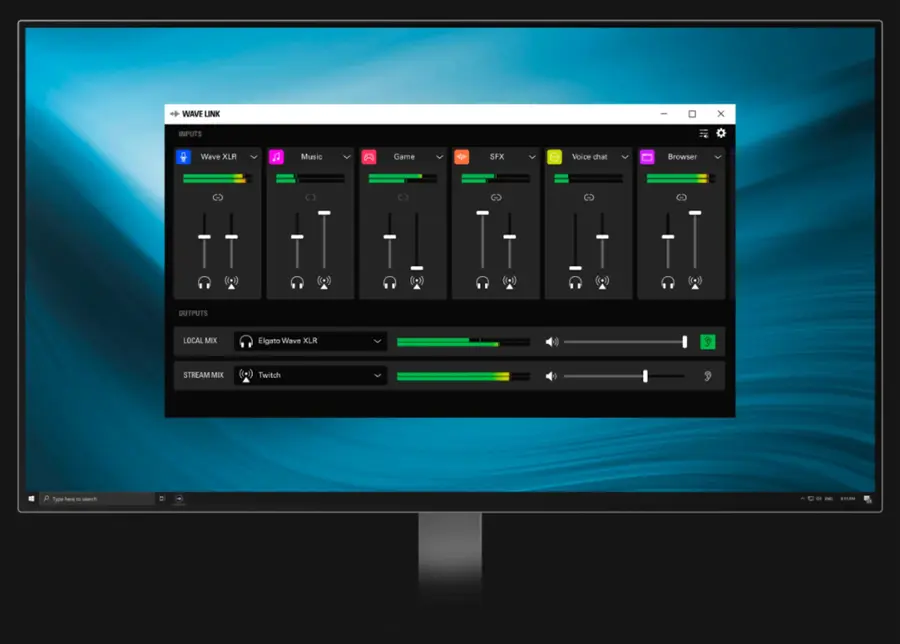

Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like proprietary Clipguard anti-distortion technology, a capacitive mute button, and integration with custom Wave Link mixing software. With up to 75 dB of ultra-low-noise gain, even notoriously insensitive dynamic mics sound loud and clear. 48 volts of phantom power bring condenser mics to life, and two switchable low-cut filters let you remove low frequencies for close and distant mic positions. You can even swap out the faceplate and control dial. Wave XLR — a compact USB interface that gives your mic superpowers.
- Frequency Response: Preserve your mic’s tone and sound signature with a frequency range of 20hz-20khz.
- Dynamic Range: Be heard with up to 100 dB of dynamic range (120 dB with Clipguard engaged)
- Equivalent Input Noise (EIN): Ensure an ultra-clean signal with an EIN of -130 dBV @ 60 dB gain.
- Gain Range: Up to 75 dB of ultra-low-noise gain amplifies insensitive mics.
- Phantom Power: 48 V phantom power drives condenser microphones.
- Maximum Input Level: 10 V @ 0 dB gain (Clipguard engaged)
- Maximum Output Level: Power high fidelity headphones with up to 77 mW of output.
- Resolution / Sample Rate: 24-bit 48/96 kHz audio ensures professional broadcast audio quality.
- Interface: Features a modern USB-C port.
- Frequency Response: Preserve your mic’s tone and sound signature with a frequency range of 20hz-20khz.
- Dynamic Range: Be heard with up to 100 dB of dynamic range (120 dB with Clipguard engaged)
- Equivalent Input Noise (EIN): Ensure an ultra-clean signal with an EIN of -130 dBV @ 60 dB gain.
- Gain Range: Up to 75 dB of ultra-low-noise gain amplifies insensitive mics.
- Phantom Power: 48 V phantom power drives condenser microphones.
- Maximum Input Level: 10 V @ 0 dB gain (Clipguard engaged)
- Maximum Output Level: Power high fidelity headphones with up to 77 mW of output.
- Resolution / Sample Rate: 24-bit 48/96 kHz audio ensures professional broadcast audio quality.
- Interface: Features a modern USB-C port.
Whats Included
- Wave XLR
- USB-C Cable
- Quick Start Guide
- Wave XLR
- USB-C Cable
- Quick Start Guide
Q: Does the Elgato Wave XLR support phantom power?
A: Yes, it provides 48 V of phantom power for condenser microphones.
Q: What kind of connector does the Elgato Wave XLR use?
A: This device uses a modern USB-C port.
Q: What is the frequency response of this microphone interface?
A: The Elgato Wave XLR has a frequency response of 20hz-20khz.
Q: How much gain does the Elgato Wave XLR offer?
A: It offers up to 75 dB of ultra-low-noise gain.
Q: What is the maximum input level of the Elgato Wave XLR?
A: The maximum input level is 10 V @ 0 dB gain (Clipguard engaged).
