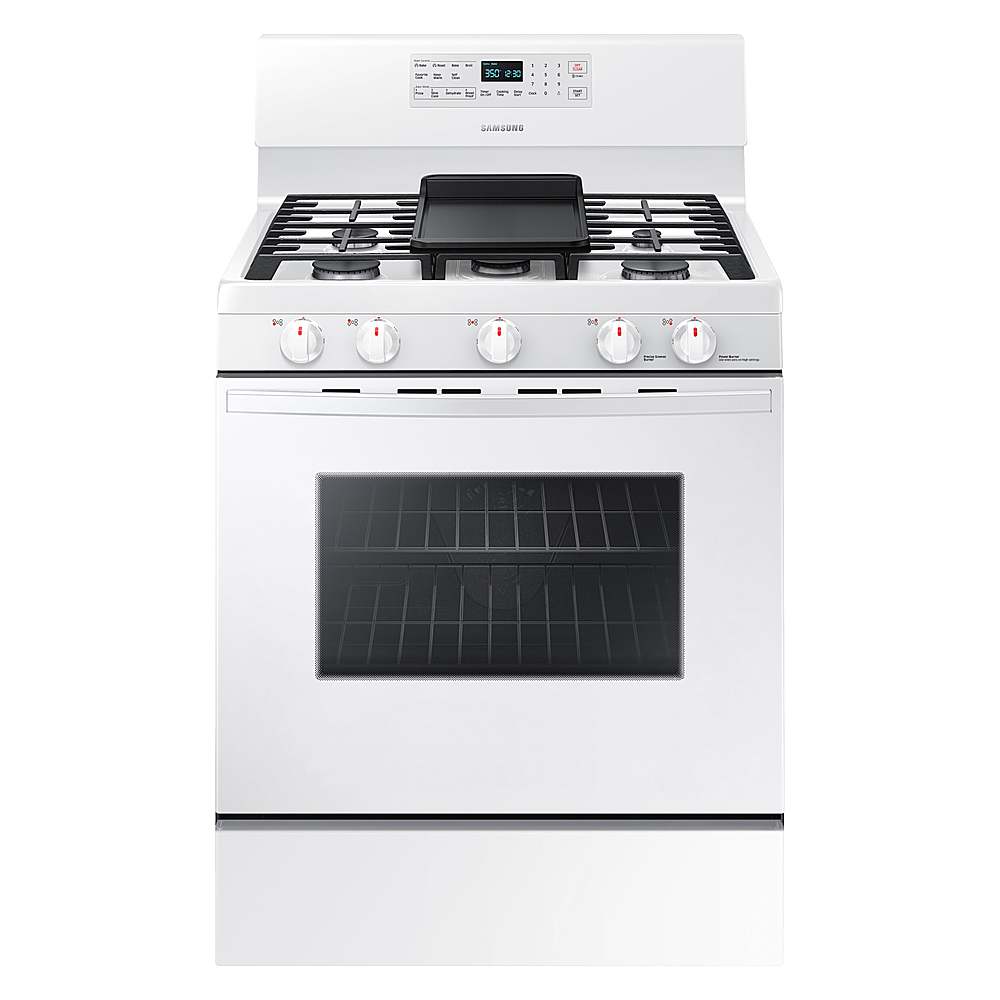

Samsung - 5.8 Cu. Ft. Freestanding Gas Convection Range with Self-High Heat Cleaning
Model: NX58T5601SW/AA
SKU: 6422050
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 46 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 47/50 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 15/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 5/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: White
- General
- Product Name: 5.8 Cu. Ft. Freestanding Gas Convection Range with Self-High Heat Cleaning
- Brand: Samsung
- Model Number: NX58T5601SW/AA
- Color Finish: White
- Dimensions
- Product Height: 46 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 47/50 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 15/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 5/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 186 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: false
- Control Type: Knob, Touchpad
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection, Bake, Broil, Roast
- Oven Settings: Delay Clean Option, Variable Broil
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Oven Window: true
- Cooktop Features
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Two Power Burners, one Simmer Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 17000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 5000 british thermal units
- Burner 4 Rating: 9500 british thermal units
- Burner 5 Rating: 9500 british thermal units
- Broiler Burner Rating: 13500 british thermal units
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 887276436937
Fan Convection distributes heat throughout the oven faster and more evenly, saving more time than traditional ovens. The large oven interior capacity can easily accommodate a big roast, multiple casserole dishes or two racks of cookies for the holidays. The powerful and flexible cooktop comes with a griddle and cooks faster with 5 specialized burners including two Power Burners and a Simmer Burner.
- Fan Convection: A powerful convection fan helps cook food faster and more evenly, allowing you to save time and produce superior cooking results
- 5.8 cu. ft. Capacity: A 5.8 cu. ft. extra-large oven allows you to cook multiple dishes at once. Easily accommodate a big roast, multiple casserole dishes, or several racks of cookies.
- Griddle: Use the removable stovetop griddle to cook breakfast foods, grill sandwiches or sauté vegetables.
- Flexible Cooktop: Powerful, Flexible Cooktop cooks more, faster with 5 specialized burners, including two Power Burners and one Simmer Burner
- Wide View Window: Check cooking progress in the Wide View Window without opening the door and losing heat.
Product Manuals
A: Hi ECarp! The broiler heating element is located inside the oven compartment of this range. ^Jecca
A: I wondered the same thing and called Samsung on that question. The white in this model does not come in that wide view extra large window. It is very misleading by Best Buy. They need to change that!
A: I'm happy to help with this, Charlene! You can find all the available parts and accessories for Samsung appliances at SamsungParts.com or by calling 1-800-627-4368. ^Jecca
Q: Can a center grate be ordered in addition to the standard center grill?
A: I just bought this range. It comes with a center grate to go over the elongated oval center burner. The rectangular griddle, also included, sits on top of the center grate. So you shouldn’t have to buy either the center grate OR the griddle separately.
Q: Does this come with propane conversion parts?
A: Yes it does, Steelheader! Samsung gas ranges come with an LP (liquid propane) conversion kit. Samsung does recommend having a licensed professional perform the conversion due to the risks associated with gas and propane. ^Jecca
A: yes they will remove old appliance. when you add it to cart it gives you the option to pay a $25 fee to remove it.
A: I'm happy to help with this, Korigan! This link (https://bit.ly/3bCAlZX) has everything you need to know about the best ways to clean the cooktop. I also have this link (https://bit.ly/3ovlgOT) that has some more details about cleaning the oven compartment as well. ^Jecca
Q: What are the oven grates made of?
A: Cast iron
